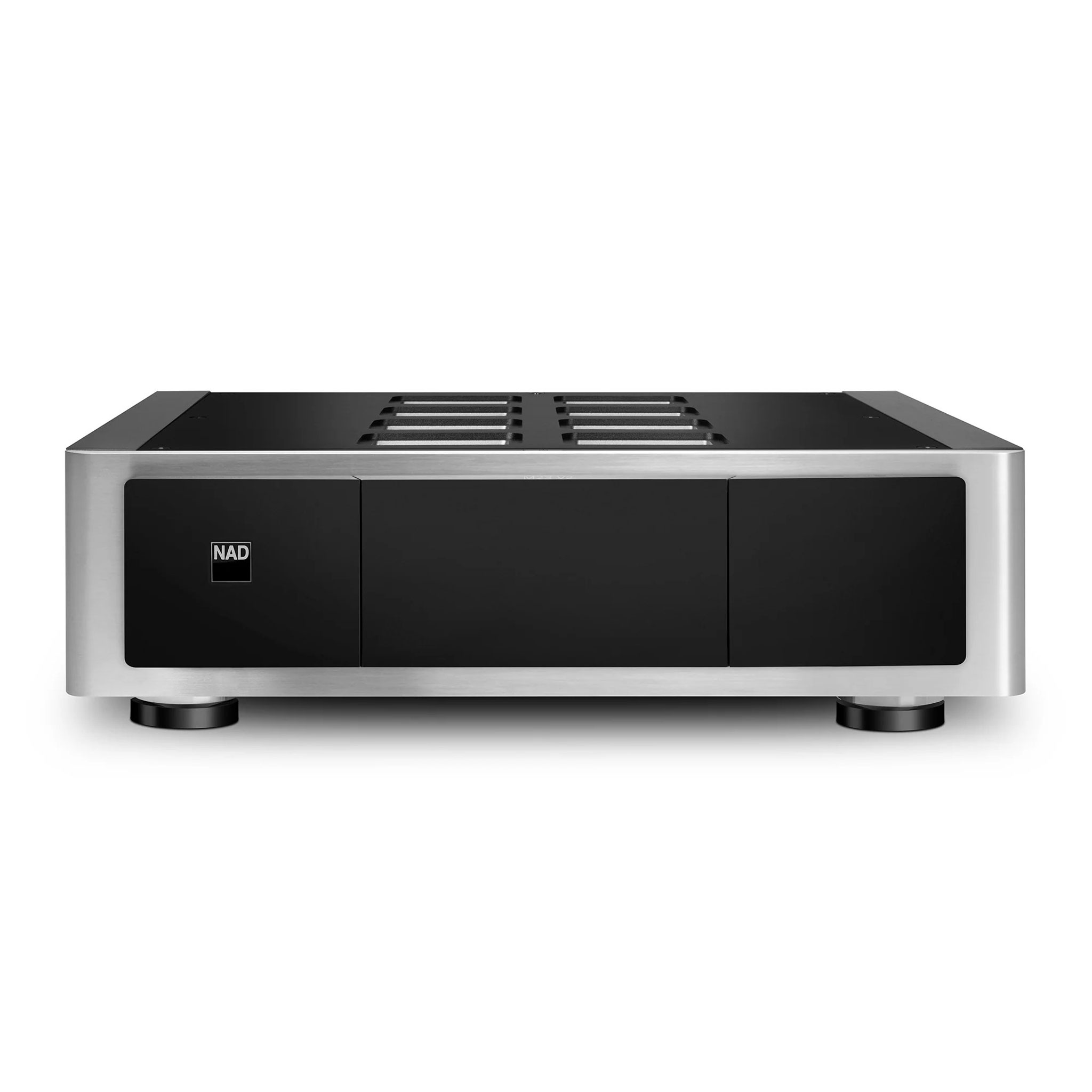

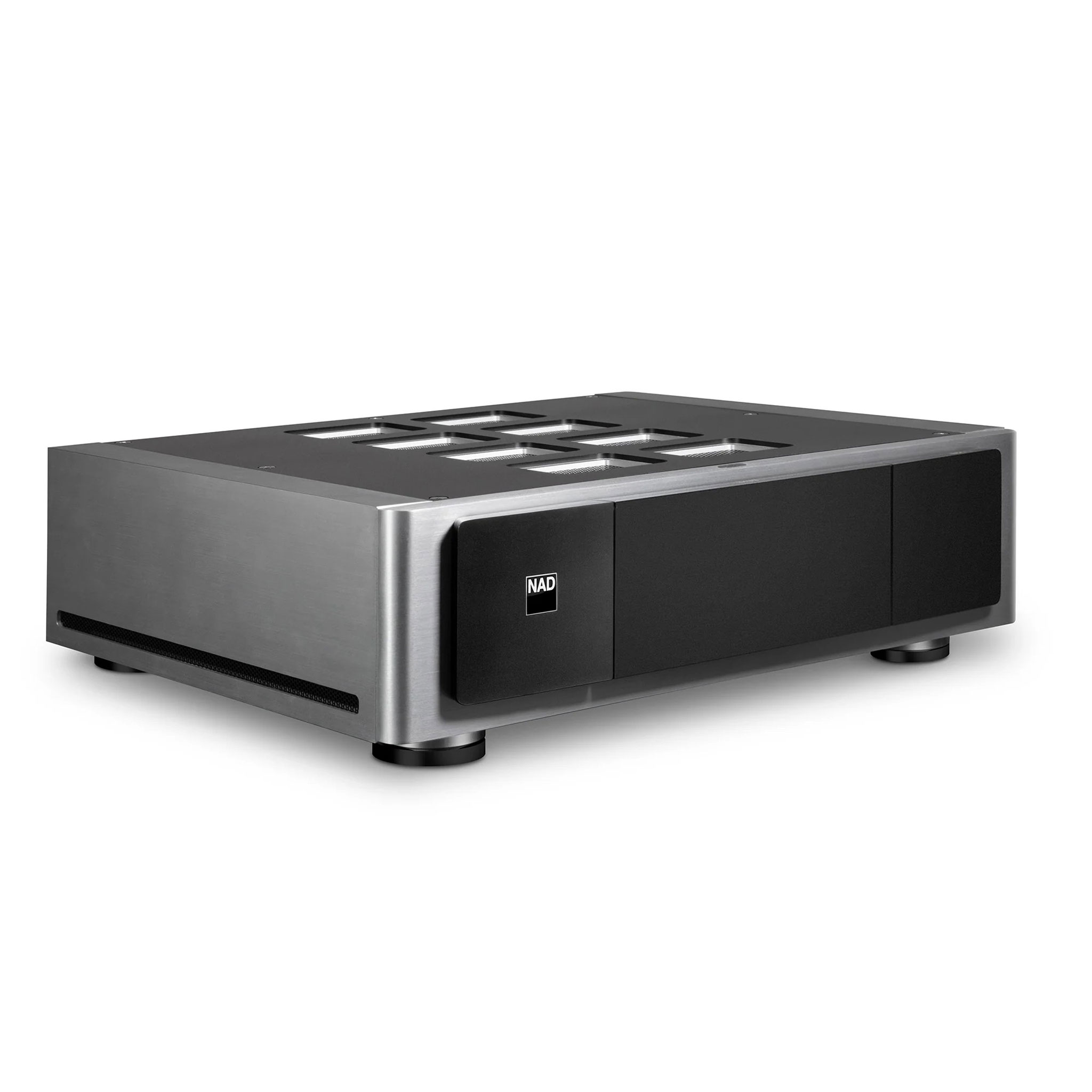

NAD M23 V2 Stereo Power Amplifier

Second-generation Purifi Eigentakt™ amplification
NAD HybridDigital™ design and engineering
200W per channel into 8 ohms; 380W per channel into 4 ohms (continuous)
700W mono continuous output in bridged mode
Virtually immeasurable noise, harmonic, and intermodulation distortion
Flat, wide frequency response into any loudspeaker

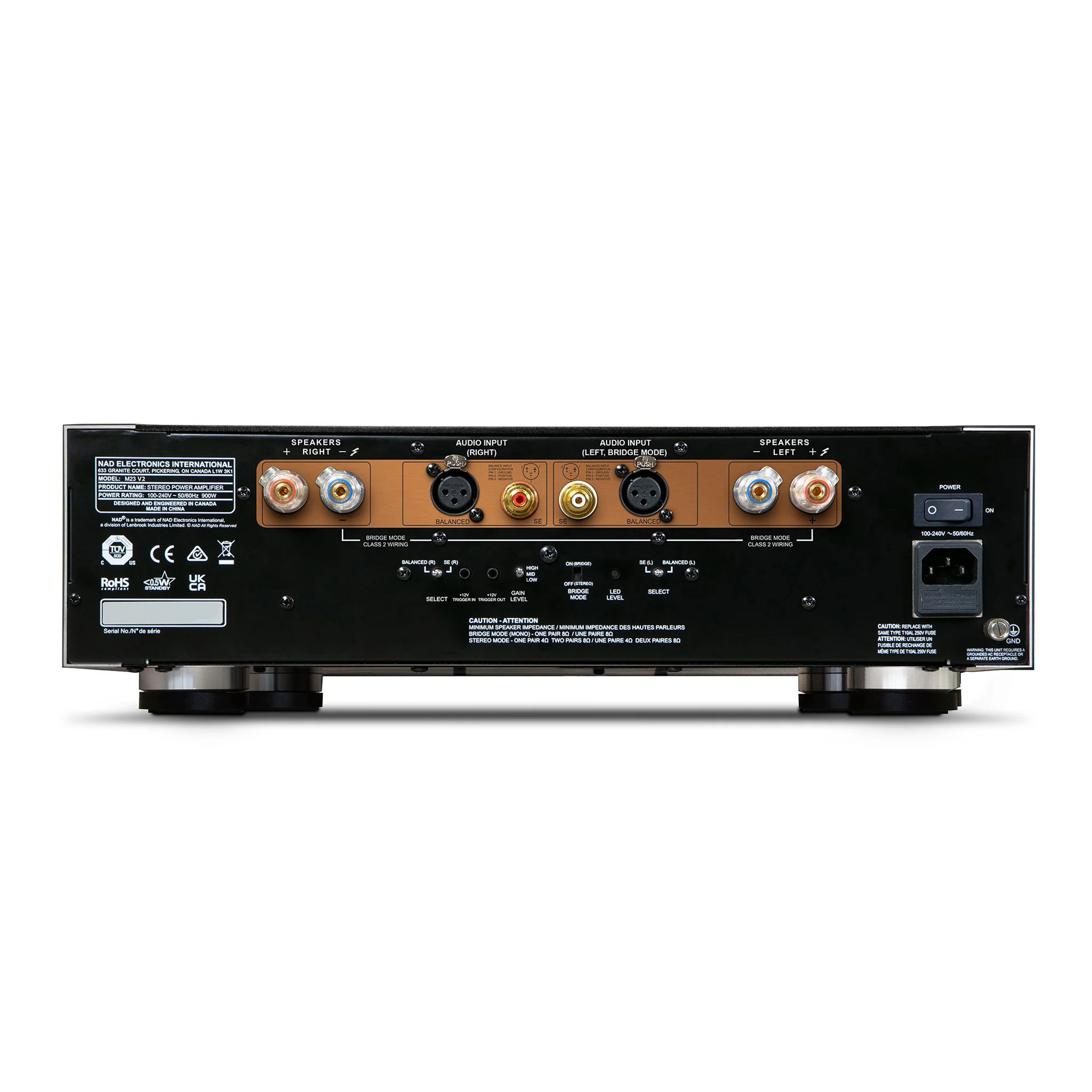

Auto-sensing balanced XLR and single-ended RCA input
Three-position adjustable gain control
Intelligent 12V trigger with delay for multi-amp systems

Giá gốc là: 124.100.000 VND.Giá hiện tại là: 104.990.000 VND.

Cho phép đặt hàng trước

Tạm Ngừng Ship Hàng Tỉnh

Hiện tại các đơn vị vận chuyển đã ngừng nhận vận chuyển hàng đi tỉnh. Vì vậy các đơn hàng vận chuyển ngoài Hồ Chí Minh sẽ được xử lý sau Tết. Các đơn hàng trong Hồ Chí Minh vẫn được xử lý bình thường.

Cho phép đặt hàng trước

Mua hàng trả góp Duyệt hồ sơ trong 5 phút Trả góp qua thẻ Visa, Master, JCB

Zalo Chat

Facebook Chat

Mô tả

Specification	Details
ANALOG AUDIO INPUT/SPEAKER OUT
Input impedance (R and C)	Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF
Frequency response (1W into 8 Ohms)	±0.06dB (20-20kHz)
Rated output power into 8 Ohms and 4 ohms (Stereo mode)	>200W into 8 Ohm, >380W into 4 Ohm
Rated output power into 8 Ohms (Bridge mode)	>700W into 8 Ohm
THD (20 Hz – 20 kHz)	<0.00069% (XLR), <0.0013% (RCA)
Signal-to-Noise Ratio	>101.7 dB (1W into 8 Ohm)
Clipping power (Stereo mode)	>210 W (0.1 % THD 1 kHz 8 ohms)
Clipping power (Bridge mode)	>770W
IHF dynamic power (Stereo mode)	8 ohms: 260 W
IHF dynamic power (Bridge mode)	1017W
Peak output current	>25 A (in 1 ohm, 1 ms)
Damping factor	>800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
Frequency response	±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz
Channel separation	High gain RCA: >97dB, Low gain XLR: >115dB (1kHz)
Stereo Mode input sensitivity (for 200 W in 8 ohms)	Low gain: 4.5V, 2.5V, 1.4V
Stereo Mode Gain	19dB (low), 23.9dB (mid), 29.2 (high)
Bridge Mode Gain	25.1dB (low), 30dB (mid), 35.2 (high)
Standby Power	<0.5W
DIMENSIONS AND WEIGHT
Dimensions (W x H x D)	435 x 133 x 381 mm (17 1/8 x 5 1/4 x 15)
Net Weight	9.7 kgs / 21.4 lbs
Shipping Weight	17.5 kgs / 38.5 lbs
Shipping Size W x H x D	569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32)
NOTE
*Specifications subject to change without notice.
